From hammer and anvil, the Archer 2 has emerged faster, smarter, and more sophisticated than ever before. Claiming top spot among the most advanced rugged handhelds out there, the Archer 2 is specifically designed to boost productivity and speed. It was made for professionals who don’t have time to mess around. Rest easy knowing you can rely on the Archer 2 to help get the work done, wherever your job takes you.



The Archer 2 incorporates all the best things about the Archer and adds to them. Featuring a new IllumiView™ high-visibility display, the Archer 2 remains extraordinarily bright under even the most glaring sunlight. You’ll love the responsiveness of its large, glove-friendly, capacitive touchscreen and numeric keypad, allowing you to input data at unprecedented speeds. And for those work days that just seem to go on and on, you can trust the Archer 2’s custom Overtime Technology™ battery will get you through it, no problem. Add all this to the signature ruggedness that Juniper Systems is known for, and you have one mean data-collecting machine you can rely on, wherever your job takes you.

specifications

accessories

support

videos

overview

Overview

BETTER, WELL, EVERYTHING

That’s right—the Archer 2 has improved on nearly every aspect imaginable. Beginning with its enlarged IllumiView high-visibility display, its brightness will knock you off your feet when you see it. On top of that, its capacitive touchscreen provides needle-sharp imagery and outstanding durability.



The Archer 2 also has improved connectivity capabilities, including enhanced GNSS performance, improved photo and video capture, built-in 1D/2D barcode scanner, in addition to Bluetooth®, Wi-Fi®, cell modem, serial, and USB connectivity features. It's also available with CDMA for use on the Verizon Network. The Archer 2 is a force to be reckoned with, right down to its speedy 1.0GHz processor that runs it all.

JUNIPER RUGGED

Built and tested to the most rigorous of standards, the Archer 2 was designed to be your reliable companion, wherever your job takes you. This tough handheld runs smoothly in all conditions, from freezing cold to blistering heat. Carrying an IP68 rating and tested to MIL-STD-810G for water, humidity, sand and dust, vibration, altitude, shock, and temperature, the Archer 2 can handle just about anything you throw at it. We also have an Archer 2 Hazloc model available with Class I, II, and III, Division 2 certifications for hazardous locations.



Visit the Archer 2’s specifications section for all the details on this rugged handheld computer.

OVERTIME TECHNOLOGY BATTERY

With all of its new features and capabilities, the Archer 2 deserves to be powered by only the best of batteries. That’s why its battery source is built with custom Overtime Technology, lasting 20 hours and up on a full charge. With a battery as solid as this one, you can stop worrying about your battery life and start focusing on the task at hand.

WE WANT YOU

Juniper Systems seeks to establish strong relationships with companies that offer total solutions to agriculture, natural resources, industrial, geomatics, public works, and military markets. We offer high-quality rugged handheld computers with long-term reliability, excellent customer service, and unique product customization. If you’re looking for a reliable, rugged handheld computer for your solution as well as a long-term business partner, contact us today.

LITERATURE DOWNLOADS:

Product Specifications

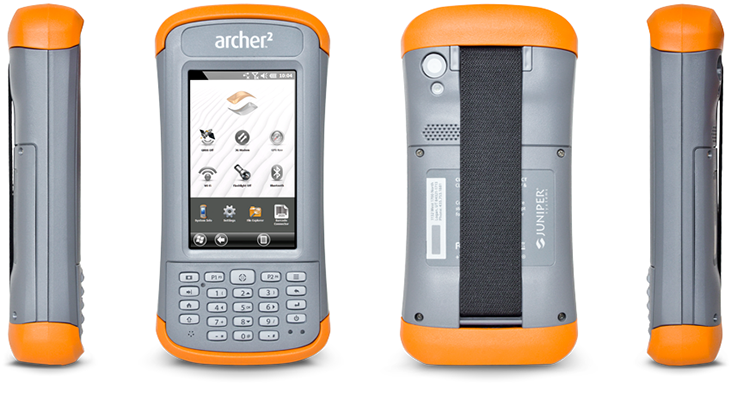

Physical

  • Size: 3.6" w x 7.25" l x 1.5" d (91 mm x 184 mm x 38 mm)
  • Weight: 1.3 lbs (590 g)
  • Durable hardened plastic in a shear-proof and shock-resistant design
  • Strong chemical resistance
  • Comfortable, wide hand strap
  • Easy-to-grip, impact-absorbing bumpers, safety orange or tactical gray

8.48"

1.36"

5.4"

Battery

  • Intelligent Li-Ion battery 3.7VDC @ 10600mAh, 38.7Whr
  • Operates for up to 20 hours on one charge
  • Charges in 2 to 4 hours
  • Battery changeable in field
  • Optimized for excellent performance in cold temperatures

20

HOURS

battery life

2-4

HOURS

charge time

lightweight Li-ion battery

Li-ion

battery

Display

  • Active viewing area: 4.3" (109 mm) WVGA LCD TFT (800x480)
  • High visibility backlit LCD
  • Portrait or landscape orientation

Touchscreen

  • Projected capacitive touch interface “optically bonded” to display for increased visibility
  • Chemically-strengthened glass

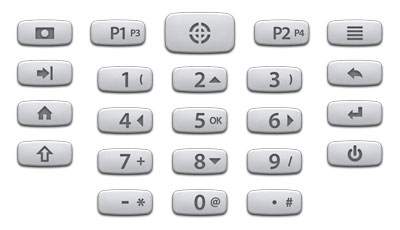

Keyboard

  • Adjustable LED backlit keys
  • Five-way directional navpad
  • Numeric keypad (6 user-reassignable)
  • OEM configurable/customizable

Juniper RuggedTM

  • IP68 waterproof and dustproof
  • Operating temperature: -22F to 140F (-30C to 60C), Note: Bluetooth® wireless technology is rated to –4F (–20C)
  • Storage temperature: -22F to 158F (–30C to 70C)
  • Shockproof: multiple drops from 5' (1.5 m) onto concrete
  • MIL-STD-810G test procedures: Method 500.5 Low Pressure (Altitude); Method 501.5 High Temperature; Method 502.5 Low Temperature; Method 503.5 Temperature Shock; Method 506.5 Rain; Method 507.5 Humidity; Method 510.5 Sand and Dust; Method 512.5 Immersion; Method 514.6 Vibration; Method 516.6 Shock
  • Optional Class I, II, & III, Div 2 non-incendive rating for use in hazardous locations

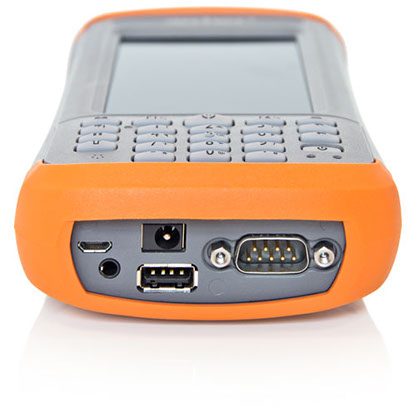

Ports

  • COM1, RS-232C 9-pin D connector with 5VDC power output
  • USB host (Full A), USB client (Micro B)
  • 12, 24VDC input, 10-36V unregulated
  • 3.5 mm audio jack, supports speaker/ microphone or stereo output (pin detect)
  • I/O module OEM configurable/customizable
  • Optional docking port connections for charging and USB communication
  • 1.0GHz ARM Cortex A8 i.MX53 processor

Processor

Cortex A8

OS & Software

  • Microsoft® Windows Embedded Handheld 6.5.3
  • Microsoft Office Mobile 2010* (Optional)
  • Multiple languages (English, French, Spanish, German, Portuguese)
  • 512 MB RAM
  • 8GB flash storage
  • User-accessible micro SD/SDHC slot

Memory & Data Storage

512 MB

MEMORY

8 GB

FLASH STORAGE

Wireless Connectivity Options

  • Bluetooth® wireless technology, 2.1 +EDR, Class 1.5
  • Wi-Fi® 802.11b/g/n with extended range
  • CDMA technology for use on the Verizon Network
  • 3.75G modem - Pentaband Worldwide (Geo 3G model only)
  • Frequencies: HSPA+/UMTS: 800/850/900/1800/1900/2100 MHz

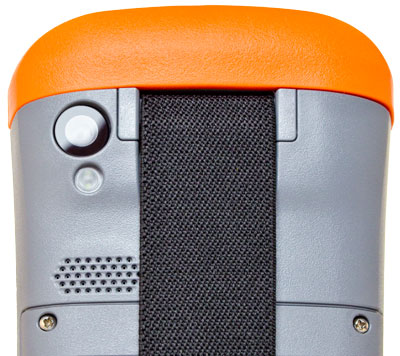

Camera (Geo Models)

  • 5MP resolution with autofocus and LED Illuminator + video capture
  • Juniper Geotagging™: embed and emboss photo with date, time, and GPS position

GPS/GNSS (Geo Models)

  • High-sensitivity GPS/GLONASS/SBAS receiver
  • User settings for enhanced performance under canopy
  • Accuracy: SBAS 2 meters; autonomous: 5 meters
  • Post-processed accuracy: sub-meter
  • NMEA-0183 ver. 4.0 out
  • 72-channel u-blox M8 engine

Archer 2 Standard Configurations

Wi-Fi® & Bluetooth®

GPS

5 MP Camera

3.75 GSM Modem

Barcode Scanner

Class I, II, & III, Div 2

Standard Model:



Geo Model:



Geo Cell Model:



Geo BC Model:



Geo Cell BC Model:



Hazloc Model:

Certifications & Standards

All models of the Archer 2 must be certified and approved to be sold into individual countries.



  • FCC Class B
  • CE Marking (applicable EMC, R&TTE, and LVD directives)
  • Industry Canada
  • Verizon Network
  • EN60950 Safety
  • Optional Class I, II, & III, Division 2 for hazardous locations

accessories

Standard Accessories Included with the Archer 2

  • 10600mAh, 38.7 Whr Lithium-Ion Battery
  • AC Wall Charger with International Plug Kit
  • Micro USB Client Sync Cable
  • Quick Start Guide
  • Ultra-wide Hand Strap
  • Capacitive Stylus & Tether
  • Shipping Box with Sleeve
  • 2-Year Warranty

Optional Accessories

A2 Single Ethernet Dock

Single slot power/charging and communications desktop dock. Includes ports for 12V power, USB Client, and 10/100-BaseT RJ-45 Ethernet. Includes USB-A to USB-B PC sync cable, and Archer 2/Allegro 2 adapter insert. Requires 22769 20W international power supply.

8 GB MicroSDHC – Part #24559

8 GB Micro SDHC Memory Card

Soft-Tip Capacitive Stylus w/Tether, 3-pack – Part #24641

Kit Includes 3 Styli + 3 Nylon Tethers

Holster Case – Part #12867

Soft padded top load case, with velcro flap closure, front cable storage pocket, belt loop and adjustable shoulder strap. Fits Mesa 2, Mesa 1, Archer 2 and Allegro 2 handhelds. High visibility safety orange.

Flip Cover Fitted Case – Part #24095

The Archer 2 Flip Cover Fitted Case adds an additional layer of protection to your Archer 2; plus, it’s comfortable. The case has a Cordura® cover, 4 D-ring attachments, stylus home, adjustable handstrap, shoulder strap, and protective display cover.

Complete Care Service Plans

While our manufacturer's warranty protects against manufacturer’s defects, we offer additional service plan options that provide extra benefits through participating repair centers, including:



  • Service plan coverage up to an unprecedented five years from the original product ship date.
  • Up to 50% discount on all charged repairs.
  • Expedited repairs and return shipping at no additional charge.
  • Replacement of worn and/or damaged parts at no additional charge.
  • Complete Comprehensive Coverage to protect your investment even when accidents occur.
  • Loaner product option when even a 1-day expedited repair is not enough.
  • Priority support through a personal account specialist
  • See all of our Complete Care plan options here.

PLATINUM

GOLD

SILVER

Support

World-Class Support

Juniper Systems offers world class support for its complete lineup of rugged data collection products. Please click on the links below to find valuable support resources related to the Archer 2.

Customer Support is also available via the following options:

videos

Archer 2 Promotional Video

Archer 2 Hold to Zoom Feature

Archer 2 Screen Grabber Application

Archer 2 Flip Cover Carrying Case

Archer 2 Boot Replacement

Archer 2 IO Replacement

Archer 2 Using the NavPad
